GoPort™ Toe Sleeves
GoPort™ Interventionless Functionality

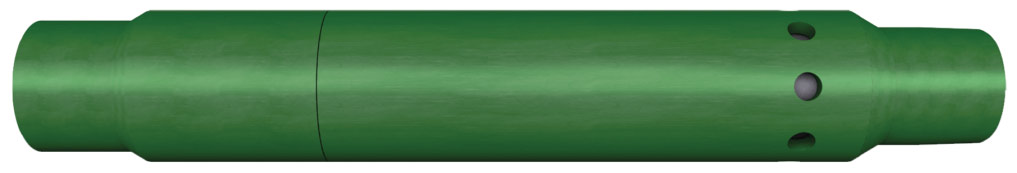

NCS Multistage pressure activated GoPort™ Toe Sleeves are a simple, sure way to achieve initial formation access for any completion.
Two versions of the GoPort™ toe sleeve are available. GoPort™ PA (pressure actuated) and the GoPort™ PAT (pressure activated testable) that uses a ball seat to enable casing pressure testing to 100% with a dissolvable ball. Both version are self-shifting without intervention at a preset pressure. After the sleeve opens, you can perform a diagnostic fracture injection testing (DFIT), flush the wellbore to avoid a cleanout run, pump perforating guns, plugs and other tools to the toe, or execute a first-stage fracture.
Product Features:
- Eliminate the need for a tubing-conveyed perforating run
- Work with all sleeve-type or plug-and-perf completions
- Full ID with no restrictions and slim OD for easy run-in
- Large / unrestricted flow port area upon opening
- Compatible with cemented or open-hole completions
- Compatible with high-density cement
- Does not interfere with cementing operations
- Mandrel design matches or exceeds casing string yield and torque ratings
