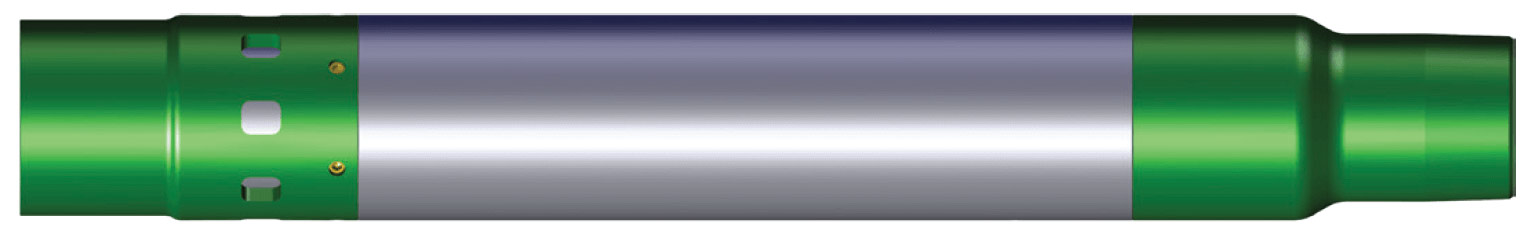

Innovus™ HD

Innovus™ HD sleeves are longer than SD sleeves and used for stimulations that involve higher frac rates, concentrations of sand, and total tonnage.

Innovus™ HD sleeves are compatible with Innovus™ frac-isolation assemblies that have special erosion-resistant components positioned across the frac ports.

Additionally, HD sleeves incorporate premium MBED™ reclosing seals and other features that ensure reliable performance in the most demanding applications.

Product Features:

• Can be deployed in cemented or open hole
• Operated by the Innovus™ frac-isolation assembly
• Deployed on coiled tubing or jointed pipe
• No pumpdown plugs or balls required
• No drillouts needed
• Accommodates frac rates up to 80 bbl/min (12.7 m3/min)
• Sleeve make-up length is 40 in (101.6 cm) or less
• Allows frac-port spacing as close as 15 ft (4.6 m)
• Compact and easy to handle
• No pup joints required for API connections
• Sleeves can be torqued through
• Sleeves can be installed in any order
• Proven functionality for stage-by-stage management
• Optional Shift-Frac-Close® sequence stops proppant flowback
• Allows fracs to heal before reopening sleeves for production
