Vecturon™
Flexibility in Design and Execution

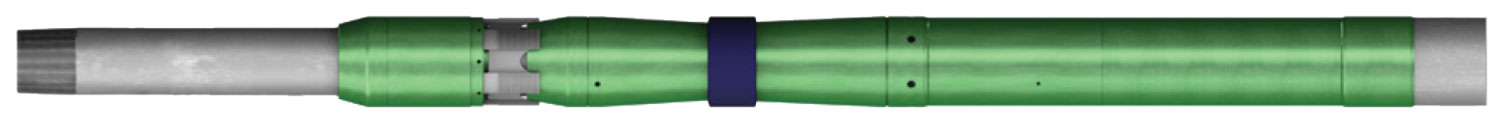

Vecturon is a hydraulic liner hanger designed and built in Canada for Canadian wells.
Vecturon™ features a one-piece, high strength mandrel, has no hidden connections and allows for a seamless install with a two-step actuation sequence. Pressure is contained within the running tool when setting hanger slips, preventing surge on the liner and formation saving time and displacement fluid with a large bypass flow area for circulation and cementing. During this process, the mechanically-set, expanding-metal, liner-top packer has a bonded elastomeric cover to prevent swab off.
Vecturon™ Features:
- A one-piece, high-strength mandrel means no hidden connections
- Two-step actuation sequence prevents unintentional running tool release
- Pressure is contained within the running tool when setting the hanger slips
- Prevents surge forces on liner and formation, saving time and displacement fluid
- Hanger slips are set prior to cementing for maximum reliability (no plug bumping)
- Large flow area through the set hanger slips facilitates circulation and cementing
- Features a bonded cover that will not swab off during circulation and cementing
- Rated to 103.4 MPa (10,000 psi) at 127° C (257° F)
- A 10-ft floating-seal tieback receptacle is standard
